•90/10 Copper Nickel Double Sweep Tee•
90/10 Copper Nickel Double Sweep Tees are high-quality socket weld fittings manufactured in accordance with NAVSEA DWG 803-6397430 and designed specifically for demanding marine and naval piping systems. These fittings are produced using premium-grade UNS C70600 / C96200 (90/10 CuNi) material, ensuring excellent resistance to seawater corrosion, erosion, and biofouling. The long-turn double sweep design allows for smooth flow transition, reducing turbulence and pressure loss in critical fluid handling applications.
These double sweep tees are supplied with 400# socket weld dimensions or as per requirement and are intended for use with Class 200 or 700 copper nickel tubes in accordance with MIL-T-16420. Manufactured to meet stringent industry and naval standards, they offer superior strength, durability, and long service life in offshore, shipbuilding, and desalination environments. Available in a wide range of sizes, these fittings can also be supplied with reduced ends or special configurations as per customer requirements.
Cunimet Alloys Pvt. Ltd. ensures strict quality control and precision manufacturing to deliver reliable and high-performance copper nickel fittings. For enquiries and orders, contact [email protected].
| Product | 90/10 Copper Nickel Double Sweep Tee |
| Specification | NAVSEA DWG 803-6397430 |
| Material | 90/10 Copper Nickel |
| Alloy Equivalent | UNS C70600 / C96200 |
| Standard | ASTM B369 |
| Pressure Rating | 400 PSIG (WOG) or as per requirement |
| Intended Use | Class 200 or 700 Copper Nickel Tube (MIL-T-16420) |
| Connection Type | Socket Weld |
| Design Type | Long Turn Double Sweep Tee |
| Available Alloys | CuNi 90/10 & CuNi 70/30 |
| Size Range | 1/4" to 4" (Custom Sizes Available) |
| Applications | Marine, Naval, Offshore, Shipbuilding, Desalination Plants |
| Nominal Pipe Size | Maximum Working Pressure (LB/IN²) | Maximum Temperature (°F) |
|---|---|---|
| 1/4" through 6" | 400 | 425 |
| Above 6" | 250 | 425 |
| Ratings are based on standard material properties. Actual performance may vary depending on size, design, and service conditions. | ||

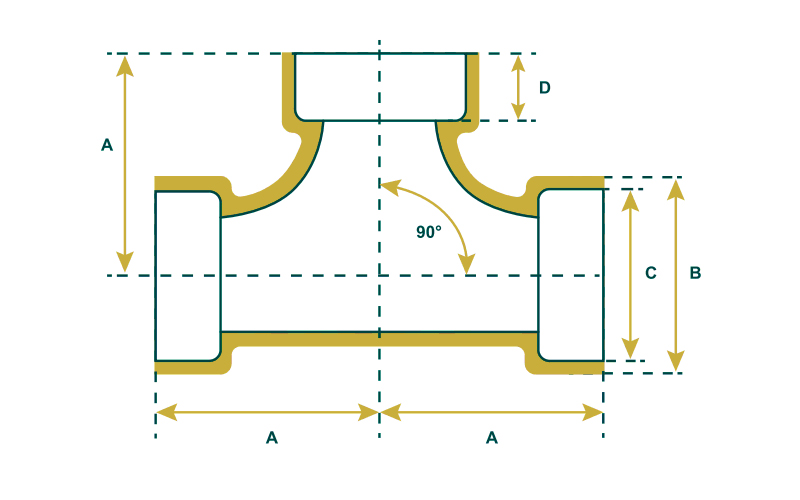

| Nominal Pipe Size | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 3 1/2 | 4 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 1.250 | 1.500 | 1.750 | 2.000 | 2.310 | 2.750 | 3.130 | 3.750 | 4.500 | 5.440 | 6.190 | 6.940 |
| B | 0.945 | 1.096 | 1.275 | 1.503 | 1.780 | 2.129 | 2.387 | 2.908 | 3.408 | 4.041 | 4.541 | 5.097 |
| C (± Tol.) | 0.545 ± .030 | 0.680 ± .030 | 0.845 ± .030 | 1.055 ± .030 | 1.320 ± .030 | 1.665 ± .030 | 1.905 ± .030 | 2.380 ± .046 | 2.880 ± .051 | 3.505 ± .055 | 4.005 ± .055 | 4.505 ± .060 |
| D | 25/94 | 5/16 | 3/8 | 13/32 | 7/16 | 1/2 | 5/8 | 23/35 | 25/32 | 77/93 | 7/8 | 29/32 |
| All dimensions are in inches. Custom sizes available on request. Contact [email protected] | ||||||||||||
| Intended For Use | Class 200 or 700 Copper Nickel Tube |
| Applicable Standard | MIL-T-16420 |
| Manufacturing Standard | NAVSEA DWG 803-6397430 (or equivalent) |
