•90/10 Copper Nickel Female Pipe Thread Adapter•
90/10 Copper Nickel Female Pipe Thread Adapters are high-quality marine-grade fittings manufactured in accordance with NAVSEA DWG 803-6397430. These adapters are designed with a Male Socket Weld x Female Pipe Thread (MSW x FPT) configuration, allowing secure and reliable connections between socket weld piping systems and threaded components. Produced using premium UNS C70600 / C96200 (90/10 CuNi) material, they offer excellent resistance to seawater corrosion, erosion, and biofouling, making them ideal for harsh marine environments.
Supplied with 400# socket weld dimensions, and also available in customized configurations as per customer requirements. These adapters are engineered for durability, leak-proof performance, and long service life in demanding applications. They are intended for use with Class 200 or 700 copper nickel tubes in accordance with relevant military and marine standards. The robust construction ensures reliable performance in high-pressure and high-flow systems while maintaining structural integrity over extended service periods.
Available in sizes ranging from ¼” to 2-1/2”, these adapters are widely used in marine, naval, offshore, and shipbuilding piping systems. Cunimet Alloys Pvt. Ltd. ensures precision manufacturing and strict quality control to deliver fittings that meet international standards. For enquiries, contact [email protected].
| Product | 90/10 Copper Nickel Female Pipe Thread Adapter |
| Specification | NAVSEA DWG 803-6397430 |
| Configuration | Male Socket Weld x Female Pipe Thread (MSW x FPT) |
| Material | 90/10 Copper Nickel |
| Alloy Equivalent | UNS C70600 / C96200 |
| Available Alloys | CuNi 90/10 & CuNi 70/30 |
| Standard | ASTM B369 |
| Pressure Rating | Up to 400 PSIG, depending on size and application |
| Size Range | 1/4" to 2-1/2" (Custom Sizes Available) |
| Applications | Marine, Naval, Offshore, Shipbuilding, Desalination |
| Nominal Pipe Size | Maximum Working Pressure (LB/IN²) | Maximum Temperature (°F) |
|---|---|---|
| 1/4" through 2-1/2" | 400 | 425 |
| Ratings are based on standard material properties. Actual service conditions may vary depending on size, design, and application. | ||

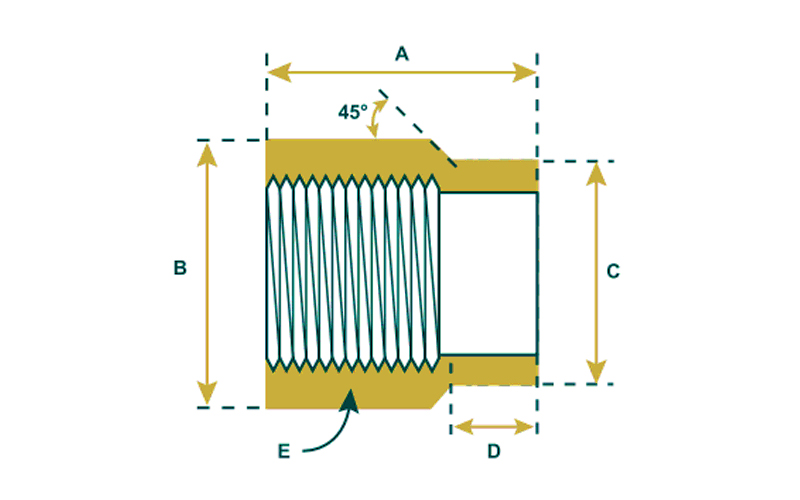

| Nominal Pipe Size | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 |
|---|---|---|---|---|---|---|---|---|
| A | 1.000 | 1.380 | 1.530 | 1.410 | 1.560 | 2.130 | 2.190 | 2.380 |
| B | 0.900 MIN - 0.945 MAX | 1.051 MIN - 1.096 MAX | 1.230 MIN - 1.275 MAX | 1.458 MIN - 1.503 MAX | 1.735 MIN - 1.780 MAX | 2.084 MIN - 2.129 MAX | 2.342 MIN - 2.387 MAX | 2.863 MIN - 2.908 MAX |
| C | 0.540 (+.000 / -.005) | 0.675 (+.000 / -.005) | 0.840 (+.000 / -.006) | 1.050 (+.000 / -.006) | 1.315 (+.000 / -.008) | 1.660 (+.000 / -.008) | 1.900 (+.000 / -.008) | 2.375 (+.000 / -.010) |
| D | 0.39 (+0.06 / -0.00) | 0.44 (+0.06 / -0.00) | 0.50 (+0.06 / -0.00) | 0.53 (+0.06 / -0.00) | 0.56 (+0.06 / -0.00) | 0.63 (+0.06 / -0.00) | 0.75 (+0.06 / -0.00) | 0.78 (+0.06 / -0.00) |
| E (Thread) | 1/4 x 18 | 3/8 x 18 | 1/2 x 14 | 3/4 x 14 | 1 x 11.5 | 1-1/4 x 11.5 | 1-1/2 x 11.5 | 2 x 11.5 |
| All dimensions are in inches. Custom sizes available on request. Contact [email protected] | ||||||||
| Intended For Use | Class 200 or 700 Copper Nickel Tube |
| Applicable Standard | MIL-T-16420 |
| Manufacturing Standard | NAVSEA DWG 803-6397430 |
