•90/10 Copper Nickel Socket Weld Cross•
90/10 Copper Nickel Socket Weld Crosses are high-performance piping fittings manufactured in accordance with NAVSEA DWG 803-6397430, specifically developed for marine and naval applications. At Cunimet Alloys Pvt. Ltd., these crosses are produced using premium-grade UNS C70600 / C96200 (90/10 CuNi) material and are cast to meet ASTM B369 specifications, ensuring superior strength, durability, and long service life in demanding environments. These fittings are designed to provide a reliable four-way connection in piping systems, enabling efficient distribution of fluids in critical applications.
These socket weld crosses are suitable for use with Class 200 or 700 copper nickel tubes in accordance with MIL-T-16420, ensuring full compliance with military and shipbuilding standards. The inherent properties of copper nickel alloys offer excellent resistance to seawater corrosion, erosion, and biofouling, making them ideal for offshore and marine conditions. Available in a wide range of sizes and configurations, these fittings are widely used in shipbuilding, desalination plants, offshore platforms, and marine piping systems.
Cunimet Alloys Pvt. Ltd. also offers customization options, including reduced ends and special designs as per client requirements. For enquiries and orders, contact [email protected].
| Product | 90/10 Copper Nickel Socket Weld Cross |
| Specification | NAVSEA DWG 803-6397430 |
| Material | 90/10 Copper Nickel |
| Alloy Equivalent | UNS C70600 / C96200 |
| Standard | ASTM B369 |
| Manufacturing Method | Cast / Forged |
| Available Alloys | 90/10 CuNi & 70/30 CuNi |
| Size Range | 1/4" to 4" (Custom Sizes Available) |
| Pressure Rating | Up to 400 PSIG (WOG) or as per requirement |
| Connection Type | Socket Weld |
| Applications | Marine, Naval, Offshore, Shipbuilding, Desalination Plants |
| Nominal Pipe Size | Material | Max Working Pressure (PSIG) | Max Temperature (°F) |
|---|---|---|---|
| 1/4" through 6" | 90/10 CuNi | 400 | 425 |
| Above 6" | 90/10 CuNi | 250 | 425 |

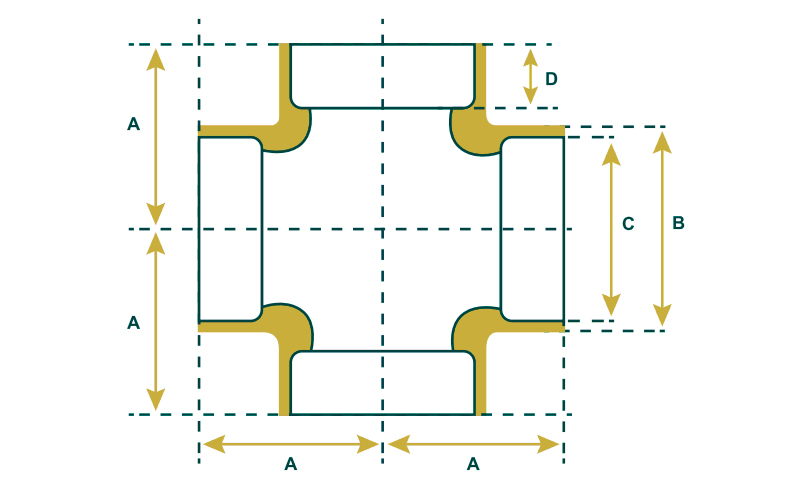

| Nominal Size | A | B | C | D |
|---|---|---|---|---|
| 1/4 | 0.71 | 0.945 | 0.545 | 25/94 |
| 3/8 | 0.82 | 1.096 | 0.680 | 5/16 |
| 1/2 | 1.01 | 1.275 | 0.845 | 3/8 |
| 3/4 | 1.18 | 1.503 | 1.055 | 13/32 |
| 1 | 1.43 | 1.780 | 1.320 | 7/16 |
| 1 1/4 | 1.69 | 2.129 | 1.665 | 1/2 |
| 1 1/2 | 1.84 | 2.387 | 1.905 | 5/8 |
| 2 | 2.12 | 2.908 | 2.380 | 23/32 |
| 2 1/2 | 2.70 | 3.408 | 2.880 | 25/32 |
| 3 | 3.08 | 4.041 | 3.505 | 7/8 |
| 3 1/2 | 3.42 | 4.541 | 4.005 | 29/32 |
| 4 | 3.79 | 5.097 | 4.505 | — |
| Custom sizes available on request. Contact [email protected] | ||||
| Intended For Use | Class 200 or 700 Copper Nickel Tube |
| Applicable Standard | MIL-T-16420 |
| Manufacturing Standard | NAVSEA DWG 803-6397430 |
