•90/10 Copper Nickel Socket Weld Tee•
90/10 Copper Nickel Socket Weld Tees are high-quality marine-grade fittings manufactured in accordance with NAVSEA DWG 803-6397430. These fittings are designed to provide efficient branch connections in piping systems while maintaining excellent flow characteristics and structural integrity. Manufactured using premium quality UNS C70600 / C96200 (90/10 CuNi) alloy, the tees offer superior resistance to seawater corrosion, erosion, stress corrosion cracking, and biofouling, making them ideal for demanding marine and offshore applications.
These tees are supplied with 400# socket weld dimensions and can also be manufactured in customized configurations and pressure ratings as per customer requirements. The fittings are precision manufactured to ensure dimensional accuracy, secure socket weld connections, and reliable leak-proof performance under high-pressure operating conditions. Available as equal tees, these fittings are commonly used where branch piping connections of the same size are required.
Available in sizes ranging from ¼” to 6”, 90/10 Copper Nickel Socket Weld Tees are widely used in marine, naval, offshore, shipbuilding, cooling water, desalination, and seawater piping systems. Cunimet Alloys Pvt. Ltd. manufactures these fittings under strict quality standards to ensure dependable service life and reliable performance in critical applications. For enquiries and orders, contact [email protected].
| Product | 90/10 Copper Nickel Socket Weld Tee |
| Specification | NAVSEA DWG 803-6397430 |
| Material | 90/10 Copper Nickel |
| Alloy Equivalent | UNS C70600 / C96200 |
| Available Alloys | CuNi 90/10 & CuNi 70/30 |
| Connection Type | Socket Weld |
| Pressure Rating | 400 PSIG (WOG) or as per requirement |
| Size Range | 1/4" to 6" (Custom Sizes Available) |
| Configuration | Equal Tee |
| Applications | Marine, Naval, Offshore, Shipbuilding & Seawater Systems, etc. |
| Nominal Pipe Size (Inches) | Maximum Working Pressure (LB/IN²) | Maximum Temperature (°F) |
|---|---|---|
| 1/4 through 6 | 200 | 425 |
| Above 6 | 150 | 425 |
| 90/10 CuNi – Intended for use with Class 200 or 700 Copper Nickel Tube IAW MIL-T-16420 | ||

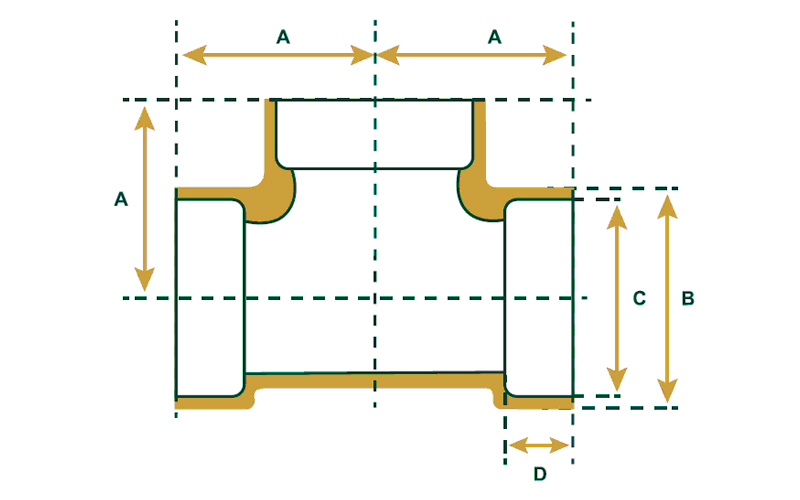

| Nominal Pipe Size | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 3 1/2 | 4 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 0.750 | 0.880 | 1.000 | 1.190 | 1.310 | 1.680 | 1.880 | 2.130 | 2.560 | 2.880 | 3.250 | 3.560 |
| B | 0.945 | 1.096 | 1.275 | 1.503 | 1.780 | 2.129 | 2.387 | 2.908 | 3.408 | 4.041 | 4.541 | 5.097 |
| C | .545 (+/- .030) | .680 (+/- .030) | .845 (+/- .030) | 1.055 (+/- .030) | 1.320 (+/- .030) | 1.665 (+/- .030) | 1.905 (+/- .030) | 2.380 (+/- .046) | 2.880 (+/- .051) | 3.505 (+/- .055) | 4.005 (+/- .055) | 4.505 (+/- .060) |
| D | 25/64 | 5/16 | 3/8 | 13/32 | 7/16 | 1/2 | 5/8 | 23/32 | 25/32 | 27/32 | 7/8 | 29/32 |
| All dimensions are in inches. Custom sizes available on request. Contact [email protected] | ||||||||||||
| Intended For Use | Class 200 or 700 Copper Nickel Tube |
| Applicable Standard | MIL-T-16420 |
| Manufacturing Standard | NAVSEA DWG 803-6397430 |
| Application | Marine, Naval, Offshore and Shipbuilding Piping Systems, etc. |
