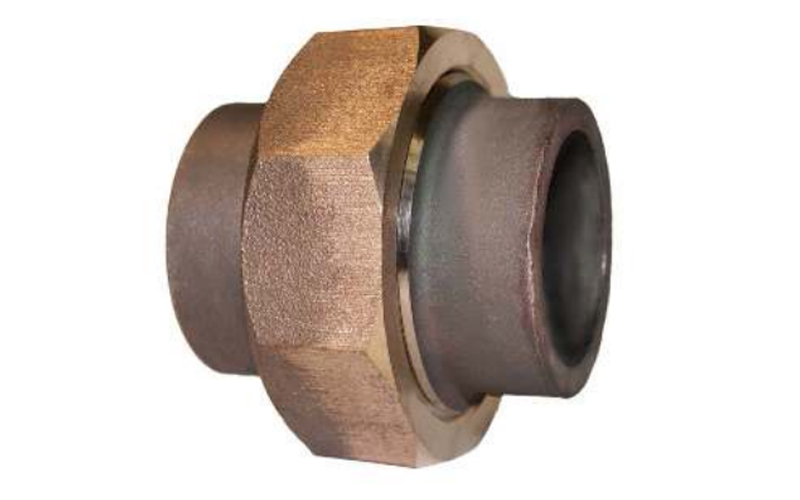

•90/10 Copper Nickel Union Assembly•
90/10 Copper Nickel Union Assemblies are high-performance marine-grade fittings manufactured in accordance with NAVSEA DWG 803-6397430. These assemblies are specifically designed to provide secure and easily detachable connections in marine and offshore piping systems. Manufactured using premium quality UNS C70600 / C96200 (90/10 CuNi) alloy, the fittings offer excellent resistance to seawater corrosion, erosion, stress corrosion cracking, and biofouling, making them ideal for demanding naval and seawater applications.
The union assembly consists of a precision-machined CUNI tailpiece and threadpiece joined together using a durable bronze nut, ensuring strong mechanical performance and leak-proof operation. These fittings are supplied with 400# socket weld dimensions and can also be manufactured in customized configurations and pressure ratings as per customer requirements. Precision manufacturing ensures accurate dimensions, reliable sealing, and long service life under high-pressure and corrosive operating conditions.
Available in sizes ranging from 1/4″ to 2-1/2″, 90/10 Copper Nickel Union Assemblies are widely used in marine, naval, offshore, shipbuilding, desalination, cooling water, and seawater piping systems. Cunimet Alloys Pvt. Ltd. manufactures these fittings under strict quality standards to ensure dependable performance in critical applications. For enquiries and orders, contact [email protected].
| Product | 90/10 Copper Nickel Socket Weld Union Assembly |
| Specification | NAVSEA DWG 803-6397430 |
| Material | 90/10 Copper Nickel |
| Alloy Equivalent | UNS C70600 / C96200 |
| Available Alloys | CuNi 90/10 & CuNi 70/30 |
| Assembly Components | CUNI Tailpiece, CUNI Threadpiece & Bronze Nut |
| Connection Type | Socket Weld |
| Pressure Rating | 400# Socket Weld Dimensions or as per requirement |
| Size Range | 1/4" to 2-1/2" (Custom Sizes Available) |
| Applications | Marine, Naval, Offshore, Shipbuilding & Seawater Systems, etc. |
| Nominal Pipe Size (Inches) | Maximum Working Pressure (LB/IN²) | Maximum Temperature (°F) |
|---|---|---|
| 1/4 through 6 | 200 | 425 |
| Above 6 | 150 | 425 |
| 90/10 CuNi (Alloy C70600 / C96200) | ||

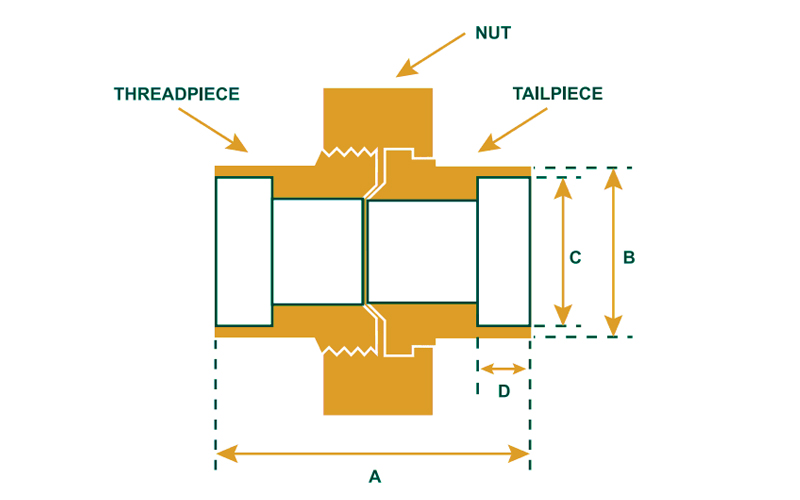

| Nominal Pipe Size | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 |
|---|---|---|---|---|---|---|---|---|
| A | 1 5/8 | 1 13/16 | 1 15/16 | 2 1/4 | 2 7/16 | 2 13/16 | 3 | 3 3/8 |
| B | .828 (+/- .015) | .984 (+/- .015) | 1.188 (+/- .015) | 1.468 (+/- .015) | 1.750 (+/- .015) | 2.125 (+/- .015) | 2.375 (+/- .015) | 2.906 (+/- .015) |
| C | .545 (+.030 / -.000) | .680 (+.030 / -.000) | .845 (+.030 / -.000) | 1.055 (+.030 / -.000) | 1.320 (+.030 / -.000) | 1.665 (+.030 / -.000) | 1.905 (+.030 / -.000) | 2.380 (+.046 / -.000) |
| D | 17/64 | 5/16 | 3/8 | 13/32 | 7/16 | 1/2 | 5/8 | 21/32 |
| All dimensions are in inches. Custom sizes available on request. Contact [email protected] | ||||||||
| Intended For Use | Class 200 or 700 Copper Nickel Tube |
| Applicable Standard | MIL-T-16420 |
| Manufacturing Standard | NAVSEA DWG 803-6397430 |
| Application | Marine, Naval, Offshore and Shipbuilding Piping Systems, etc. |
