•90/10 Copper Nickel Union Tailpiece•

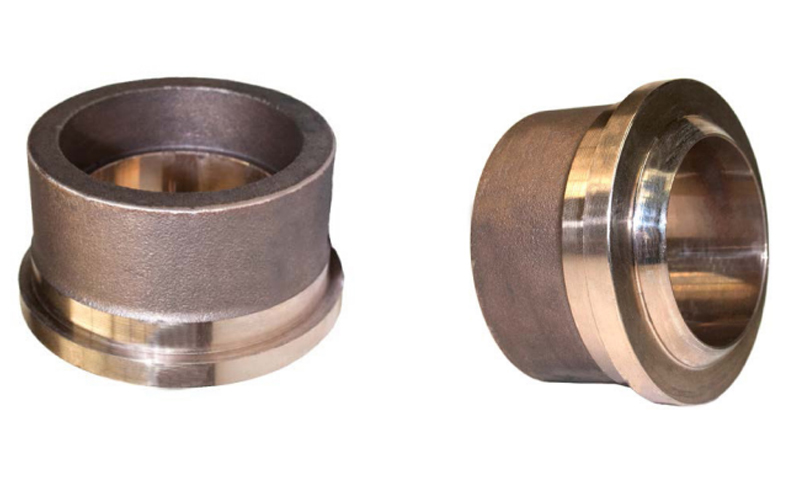

90/10 Copper Nickel Union Tailpieces are marine-grade fittings manufactured in accordance with NAVSEA DWG 803-6397430 for use in copper nickel piping systems aboard naval vessels, commercial ships, offshore platforms, and seawater handling installations. These precision-machined fittings form an essential part of a union assembly and are designed to connect with matching threadpieces and bronze union nuts, allowing convenient assembly, maintenance, and disassembly of piping systems without disturbing adjacent pipework.
Manufactured from high-quality 90/10 Copper Nickel (UNS C70600 / C96200), union tailpieces provide outstanding resistance to seawater corrosion, erosion, impingement attack, and marine biofouling. These characteristics make them particularly suitable for demanding saltwater environments where long service life and reliability are critical. The fittings are supplied with 400# socket weld dimensions in accordance with the drawing requirements and may also be produced to customer-specified configurations where required.
Available in sizes ranging from 1/4″ to 2-1/2″ or custom sizes, 90/10 Copper Nickel Union Tailpieces are widely used in seawater cooling systems, firemain systems, ballast lines, desalination plants, offshore process piping, and shipboard utility services. Precision manufacturing ensures accurate fit-up, leak-tight performance, and dependable operation under challenging marine conditions. These fittings are an integral component in creating durable and serviceable union assemblies for critical piping applications.
Looking for high-quality 90/10 Copper Nickel Union Tailpieces manufactured to NAVSEA standards? Contact [email protected] today for pricing, technical assistance, custom sizes, and project-specific requirements.
| Product | 90/10 Copper Nickel Union Tailpiece |
| Specification | NAVSEA DWG 803-6397430 |
| Material | 90/10 Copper Nickel |
| Alloy Equivalent | UNS C70600 / C96200 |
| Available Alloys | CuNi 90/10 & CuNi 70/30 |
| Connection Type | Socket Weld |
| Pressure Rating | 400# Socket Weld Dimensions or as Required |
| Size Range | 1/4" to 2-1/2" (Custom Sizes) |
| Applications | Marine, Naval, Offshore, Shipbuilding & Seawater Systems, etc. |
| Nominal Pipe Size (Inches) | Maximum Working Pressure (LB/IN²) | Maximum Temperature (°F) |
|---|---|---|
| 1/4 through 6 | 200 | 425 |
| Above 6 | 150 | 425 |
| 90/10 CuNi (UNS C70600 / C96200) | ||

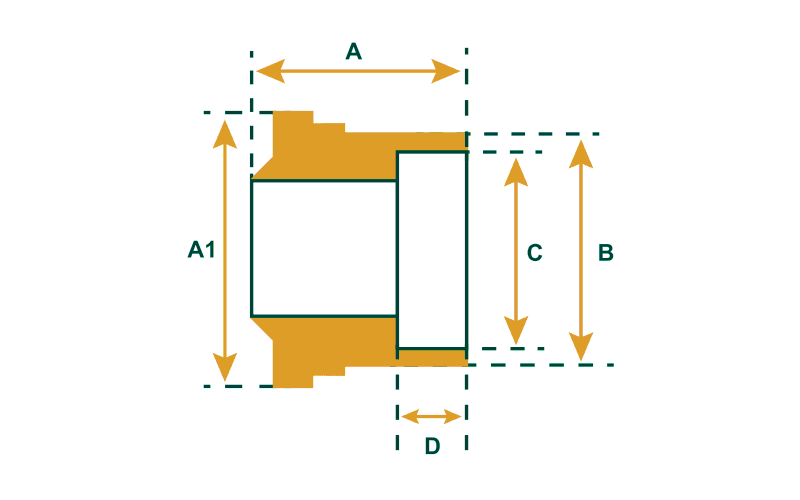

| Nominal Pipe Size | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 |
|---|---|---|---|---|---|---|---|---|
| A | 0.87 (±0.02) | 0.96 (±0.02) | 1.05 (±0.02) | 1.15 (±0.02) | 1.30 (±0.02) | 1.47 (±0.02) | 1.62 (±0.02) | 1.85 (±0.02) |
| A1 | 0.965 (±0.005) | 1.135 (±0.005) | 1.345 (±0.005) | 1.650 (±0.005) | 1.975 (±0.005) | 2.395 (±0.005) | 2.710 (±0.005) | 3.310 (±0.005) |
| B | 0.828 (±0.015) | 0.984 (±0.015) | 1.188 (±0.015) | 1.468 (±0.015) | 1.750 (±0.015) | 2.125 (±0.015) | 2.375 (±0.015) | 2.906 (±0.015) |
| C | 0.545 (±0.030) | 0.680 (±0.030) | 0.845 (±0.030) | 1.055 (±0.030) | 1.320 (±0.030) | 1.665 (±0.030) | 1.905 (±0.030) | 2.380 (±0.046) |
| D | 17/64 | 5/16 | 3/8 | 13/32 | 7/16 | 1/2 | 5/8 | 21/32 |
| All dimensions are in inches. Dimensions per NAVSEA DWG 803-6397430. For custom requirements contact [email protected] | ||||||||
| Intended For Use | Class 200 or 700 Copper Nickel Tube |
| Applicable Standard | MIL-T-16420 |
| Manufacturing Drawing | NAVSEA DWG 803-6397430 |
| Application | Marine, Naval, Offshore, Shipbuilding, Cooling Water & Seawater Piping Systems, etc. |
