• GENERAL STANDARDS TABLE • CUPRONICKEL PIPE FITTINGS •
The following table shows the general standards of Buttweld Fittings made of cupronickel. The material being used here are: CuNi10Fe1Mn and CuNi30Fe1Mn, which simply refers to 90/10 copper nickel and 70/30 copper nickel.
The copper nickel buttweld fittings we manufacture, supply and export strictly follow the below mentioned international standards like DIN, EEMUA, ANSI, MILC, etc. We also take order requests to manufacture the said items as per customer’s dimensions.
Material :
CuNi10Fe1Mn
CuNi30Fe1Mn
Specification/Standards:
MIL-T-16420 Alloy 706/715,
EEMUA 145/416, EEMUA 234
NAVSEA DWG No. 803-6397430
| General Standards | CuNi10Fe1Mn | CuNi30Mn1Fe | |
|---|---|---|---|
| STANDARD | EN12163 / EN12165 / EN12167 / EN12420 DIN 17672 BS2874 DEF STAN 02-879 ANNEX C / NES779 / DEF STAN 02-779 |
EN12163 / EN12165 / EN12167 / EN12420 DIN17672 BS2874 DEFSTAN 02-879 ANNEX B / NES780 / DEF STAN 02-780 STF 2255 / B007 |
|
| EUROPE | MATERIAL STANDARD |
C352H 2.0872 CN102 |
CW354H 2.0882 CN107 |
| DELIVERY CONDITION | M / R280 / .10 / O / M | M / R370 / .1O / O / M | |
| STANDARD | ASTM B122 / ASTM B124 / ASTM B151 / ASTM B171 MILC 15726F / MILC 24679SH |
ASTM B122 / ASTMB124 / ASTM B151 / ASTMB171 MILC 15726F / MILC 24679SH |
|
| UNITED STATES | MATERIAL STANDARD |
UNS C70600 / C70610 / C70620 | UNS C71500 / UNS C71520 |
| DELIVERY CONDITION | O / O60 / H01 / M30 | O / O60 / H01 / M30 | |
Get a price quote for above mentioned products according to their dimensions or any other copper nickel products, by reaching out to us using email, call or through “request a quote” form available in the sidebar.

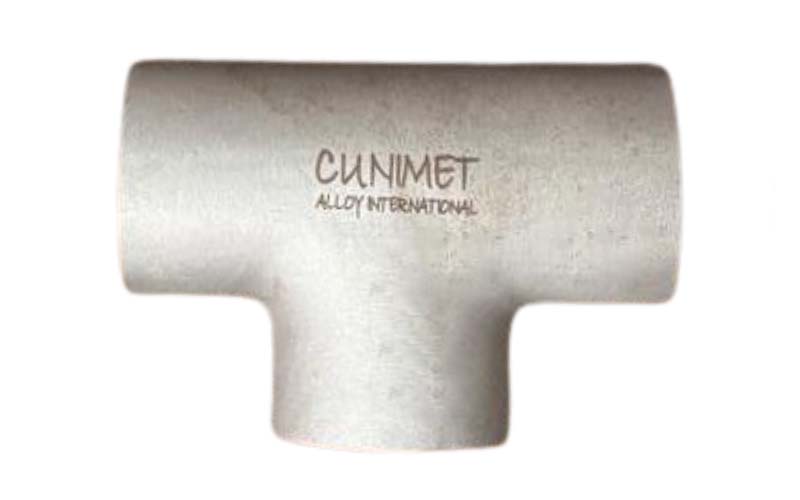

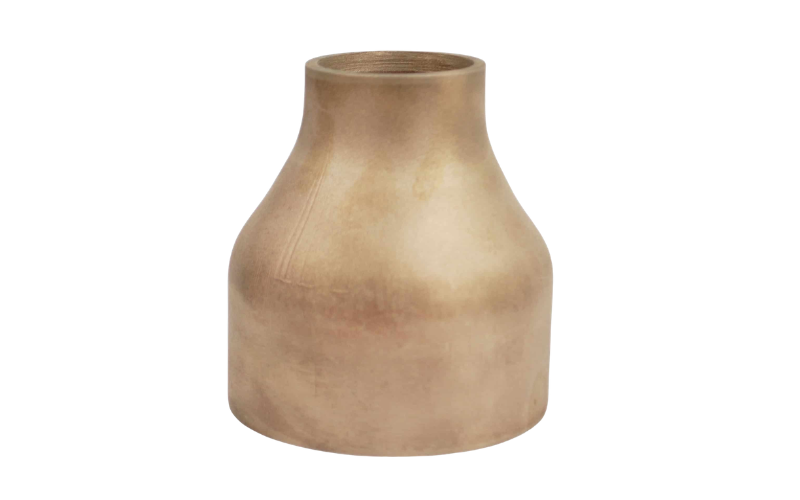

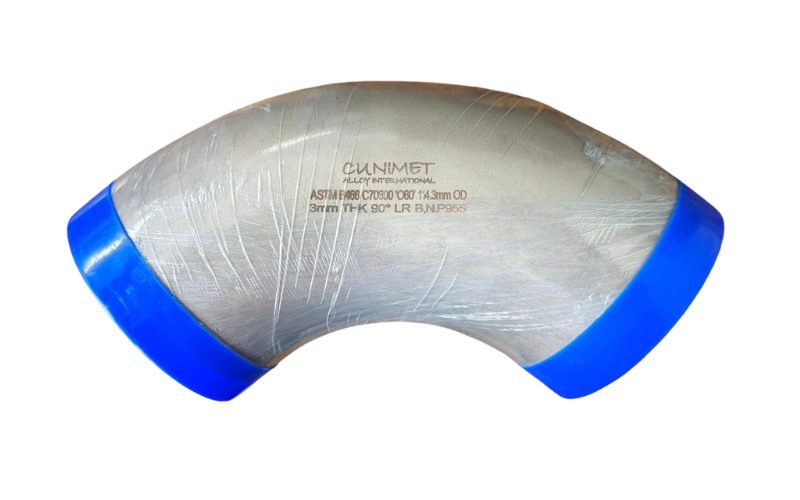

If you are looking for other copper nickel products that we offer like slip on flanges, socket weld flanges, long & short elbows, reducers, tees, blind flanges, round bars, square bars, etc. then use the links in the box titled “other products” or use the navigation menu that is on top of the page. Some related products you might want to see are:
