• 90/10 CuNi Socket Weld Caps•
90/10 Copper Nickel Socket Weld Caps are high-quality piping components manufactured in accordance with NAVSEA DWG 803-6397430, designed for demanding marine and naval applications. At Cunimet Alloys Pvt. Ltd., these caps are produced using premium-grade UNS C70600 (90/10 CuNi) material, ensuring excellent resistance to seawater corrosion, biofouling, and erosion in harsh environments. These socket weld caps are specifically engineered to provide a secure and leak-proof closure to piping systems, making them ideal for critical installations.
The fittings are suitable for use with Class 200 or 700 copper nickel tubes in compliance with MIL-T-16420, ensuring compatibility with military and shipbuilding standards. With a typical pressure rating up to 400 PSIG (WOG) and temperature resistance up to 425°F, these caps deliver reliable performance under high-pressure and high-temperature conditions. Available in sizes ranging from 1/4” to 6”, they are widely used in shipbuilding, offshore platforms, desalination plants, and marine piping systems.
Contact Us: For enquiries and orders, email us at [email protected]
| Product | 90/10 Copper Nickel Socket Weld Cap |
| Specification | NAVSEA DWG 803-6397430 |
| Material | 90/10 Copper Nickel |
| Alloy Equivalent | UNS C70600 / C96200 |
| Pressure Rating | Up to 400 PSIG (WOG) |
| Temperature Rating | Up to 425°F |
| Size Range | 1/4" to 6" |
| Connection Type | Socket Weld |
| Intended Use | Class 200 or 700 Copper Nickel Tube IAW MIL-T-16420 |
| Applications | Marine, Naval, Offshore, Shipbuilding, Desalination Plants |
| Features | Excellent seawater corrosion resistance, high strength, leak-proof sealing, long service life |
| Nominal Pipe Size | Material | Max Working Pressure (PSIG) | Max Temperature (°F) |
|---|---|---|---|
| 1/4" through 6" | 90/10 CuNi (C70600 / C96200) | 400 | 425 |
| Above 6" | 90/10 CuNi (C70600 / C96200) | 250 | 425 |

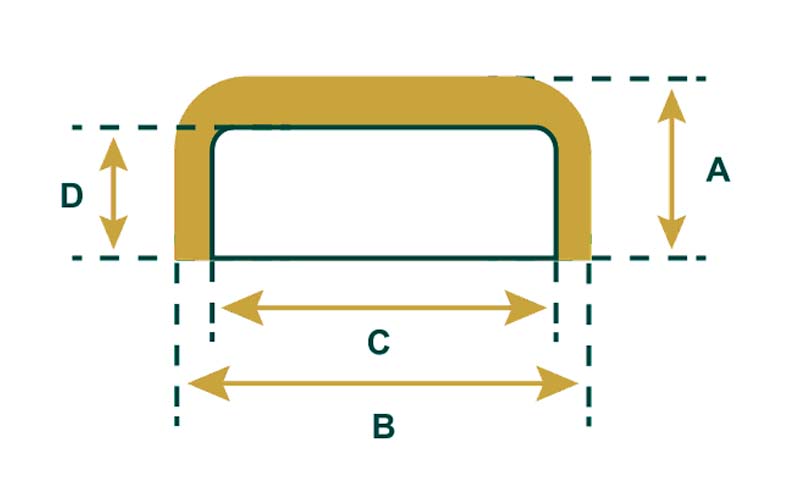

| Nominal Pipe Size (Inches) | A | B | C | D |
|---|---|---|---|---|
| 1/4 | 0.380 | 0.945 | 0.545 | 25/94 |
| 3/8 | 0.420 | 1.096 | 0.680 | 5/16 |
| 1/2 | 0.500 | 1.275 | 0.845 | 3/8 |
| 3/4 | 0.540 | 1.503 | 1.055 | 13/32 |
| 1 | 0.590 | 1.780 | 1.320 | 7/16 |
| 1 1/4 | 0.670 | 2.129 | 1.665 | 1/2 |
| 1 1/2 | 0.820 | 2.387 | 1.905 | 5/8 |
| 2 | 0.880 | 2.908 | 2.380 | 23/32 |
| 2 1/2 | 1.030 | 3.408 | 2.880 | 25/32 |
| 3 | 1.120 | 4.041 | 3.505 | 7/8 |
| 3 1/2 | 1.200 | 4.541 | 4.005 | 29/32 |
| 4 | 1.270 | 5.097 | 4.505 | — |
| Custom sizes are available on request. Please contact us at [email protected] | ||||
| Intended For Use | Class 200 or 700 Copper Nickel Tubes |
| Standard | MIL-T-16420 |
